Bright Source

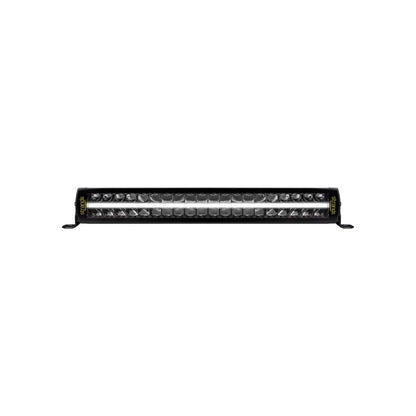

22″ SIBERIA OUTLAW DOUBLE ROW LIGHT BAR
22″ SIBERIA OUTLAW DOUBLE ROW LIGHT BAR
Product Specification
Product Specification
- Type of lamp LED
- PCS LED´s 40
- Voltage (V DC) 10-30V DC
- Theoretical effect (w) 12V 400
- Theoretical effect (w) 24V 400
- Consumption (w) 12V 269.6
- Consumption (w) 24V 256.6
- Consumption specific function (w) 12V White position light: 5.5
Amber position light: 14.5 - Consumption specific function (w) 24V White position light: 5.5
Amber position light: 14.5 - Theoretical lumen 29600
- Actual lumen 13007

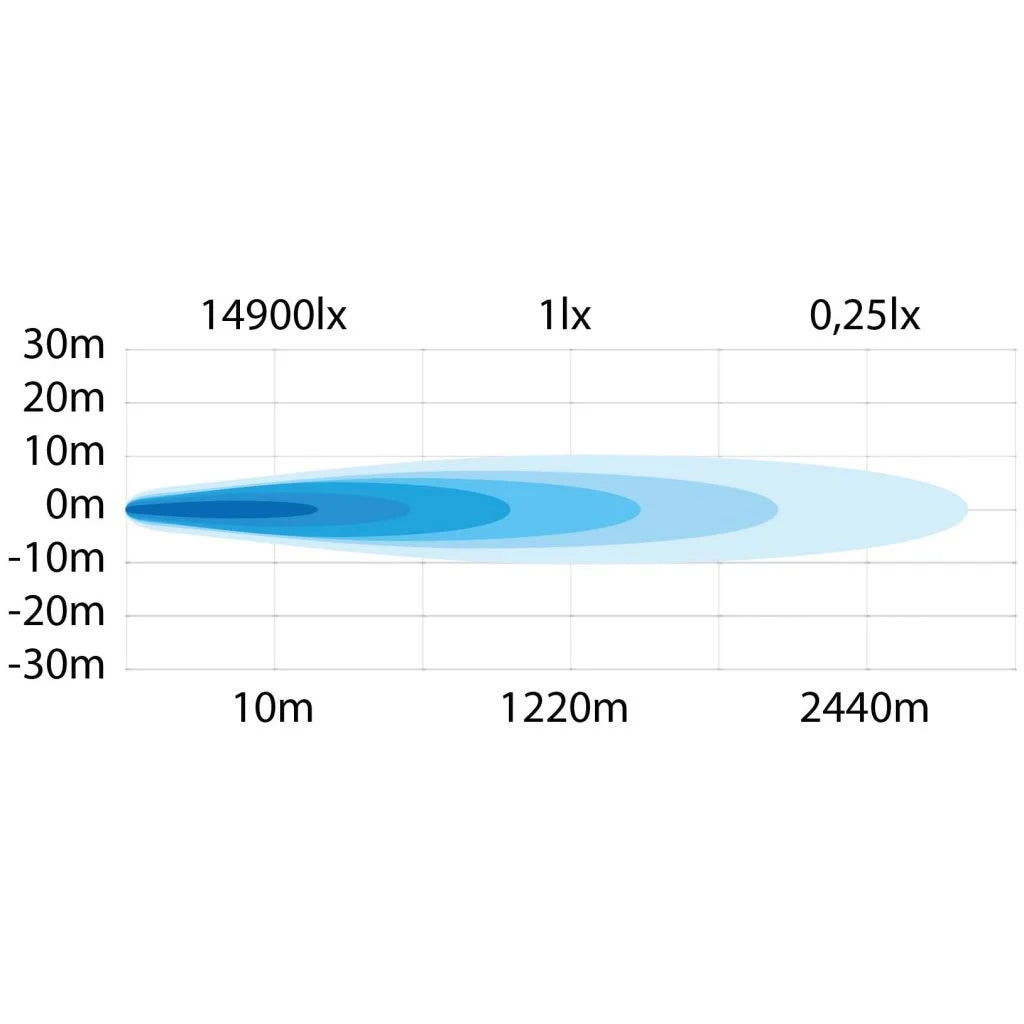

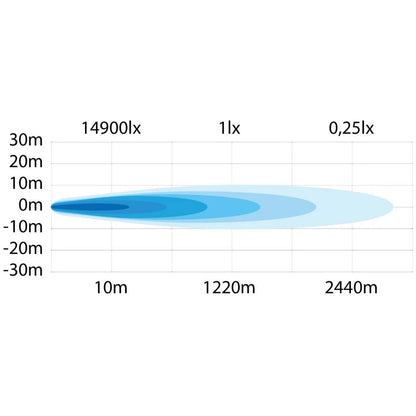

- 1 LUX @ m 1220
- Kelvin 6000
- IP-class 67/69K
- Colour housing Black
- Colour lens Clear
- Colour LED´s White and amber
- Beam pattern Spot

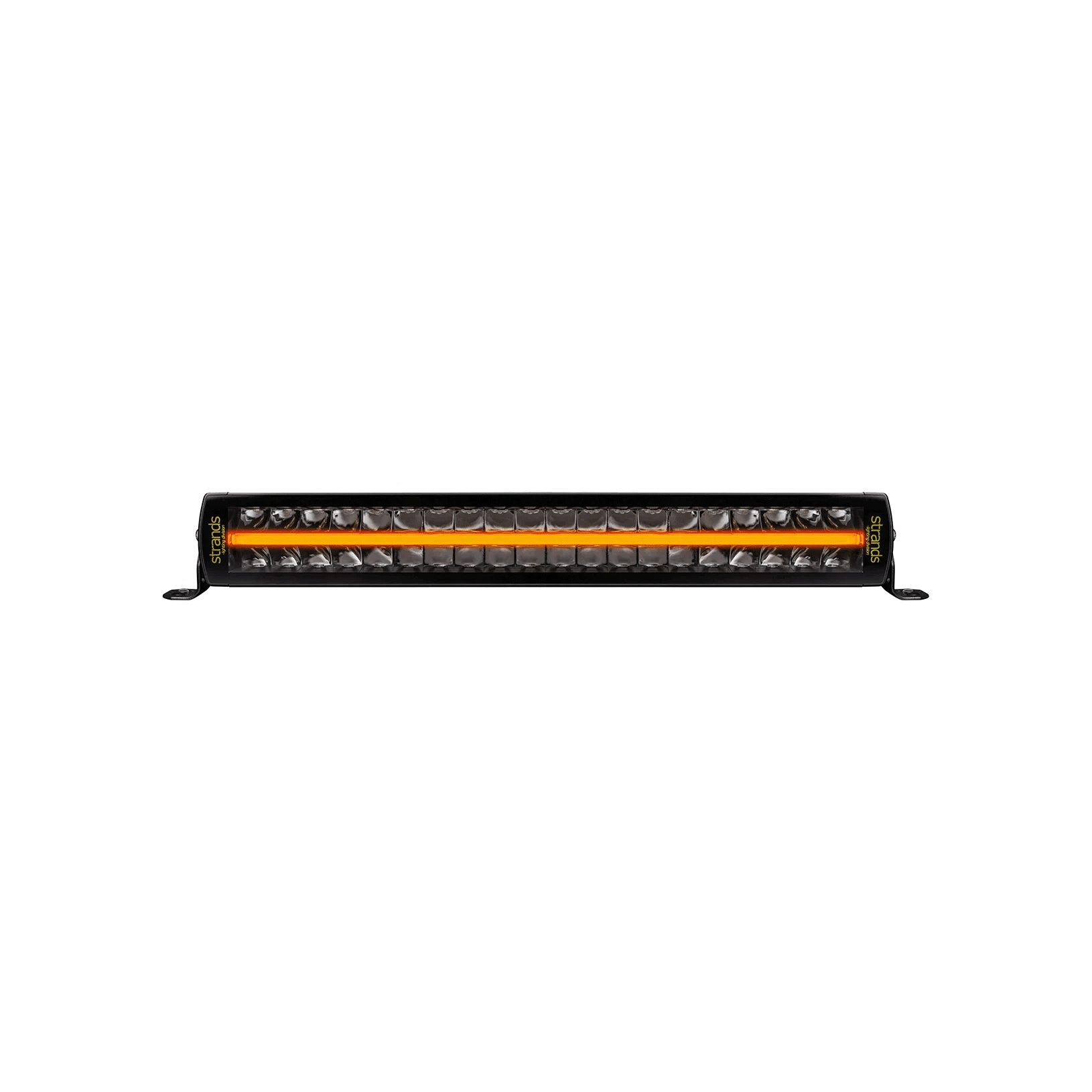

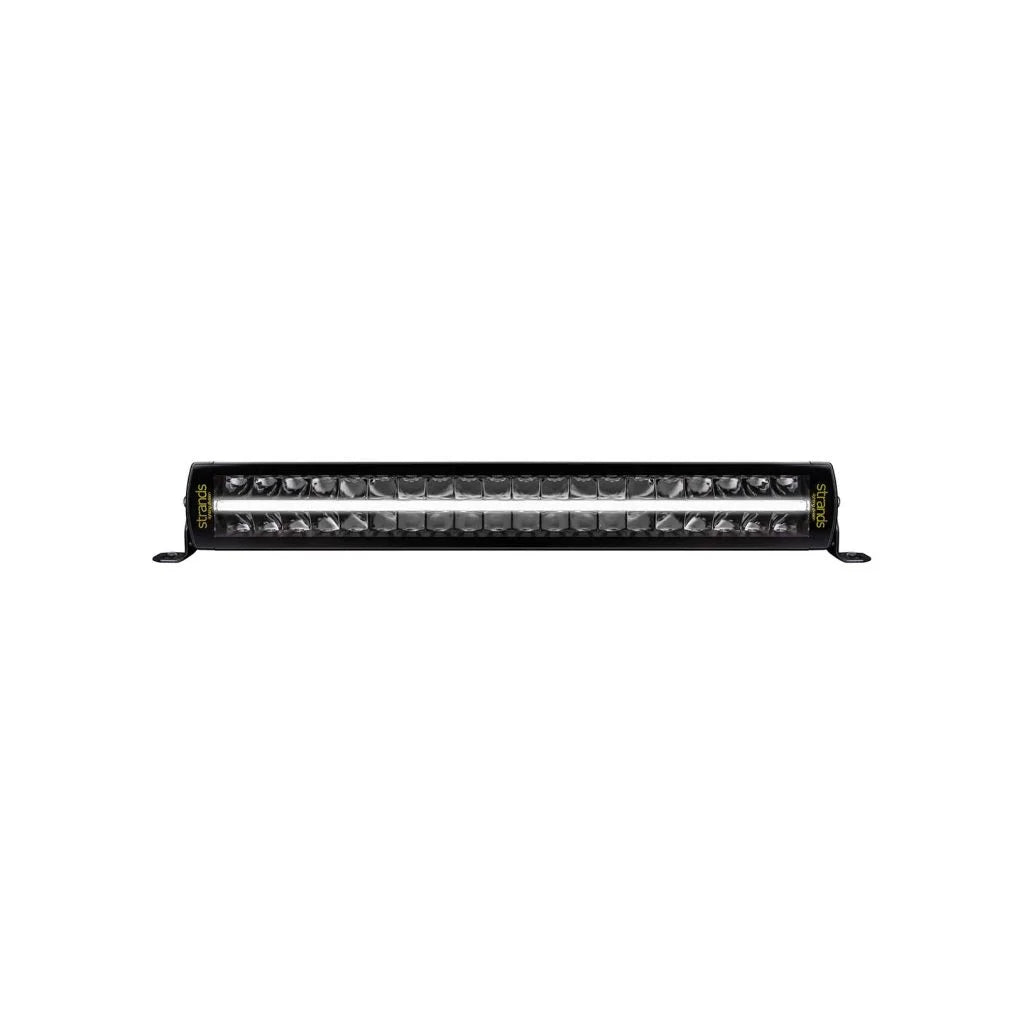

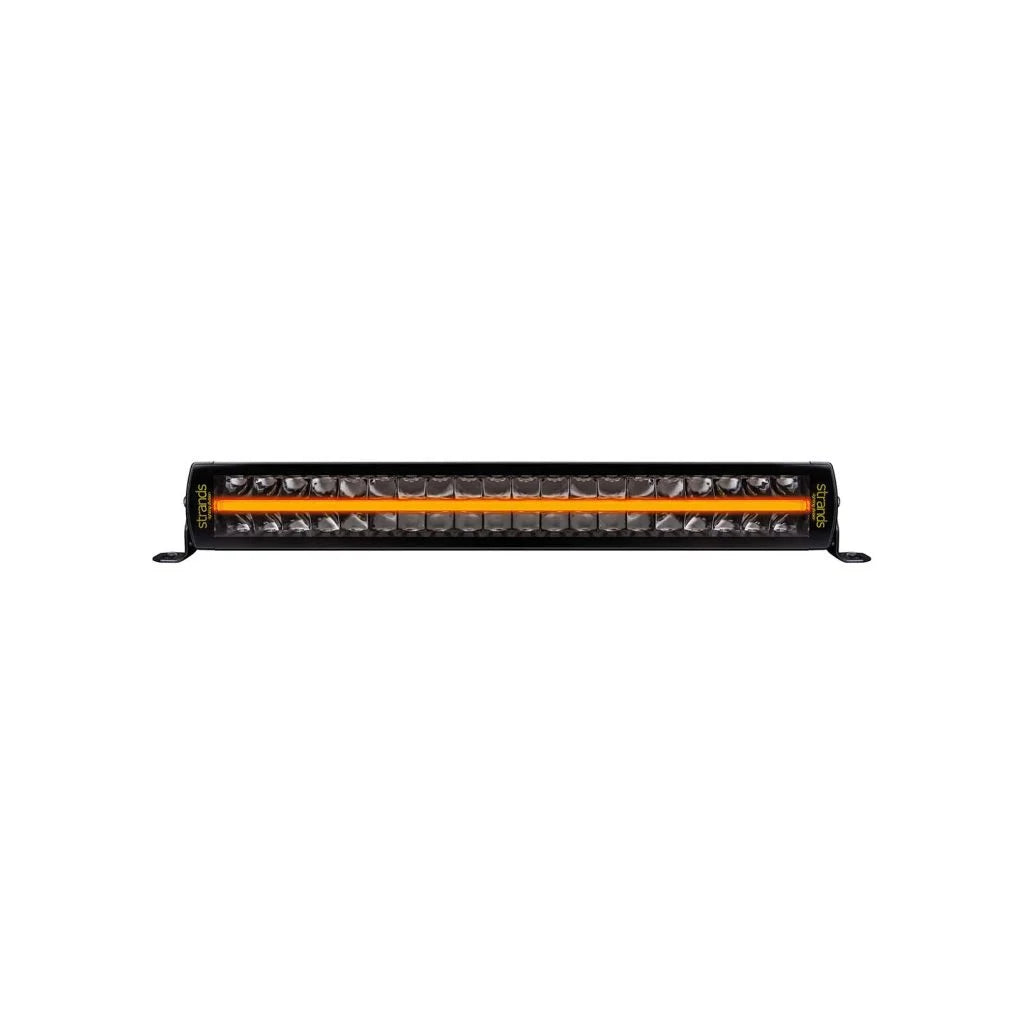

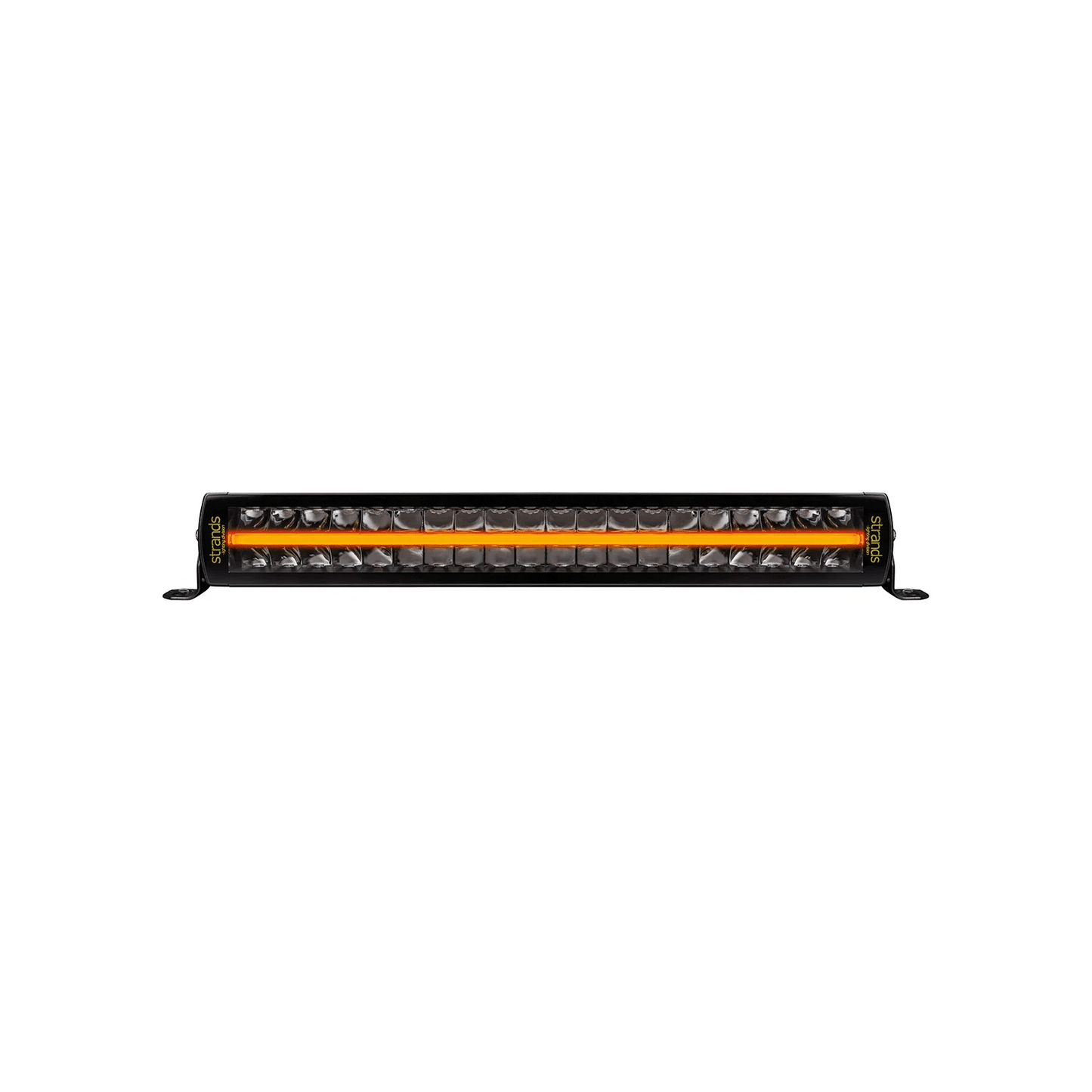

- Position light Yes white and amber
- Connection Pigtail (no connector)
- Cable length (mm) 2500

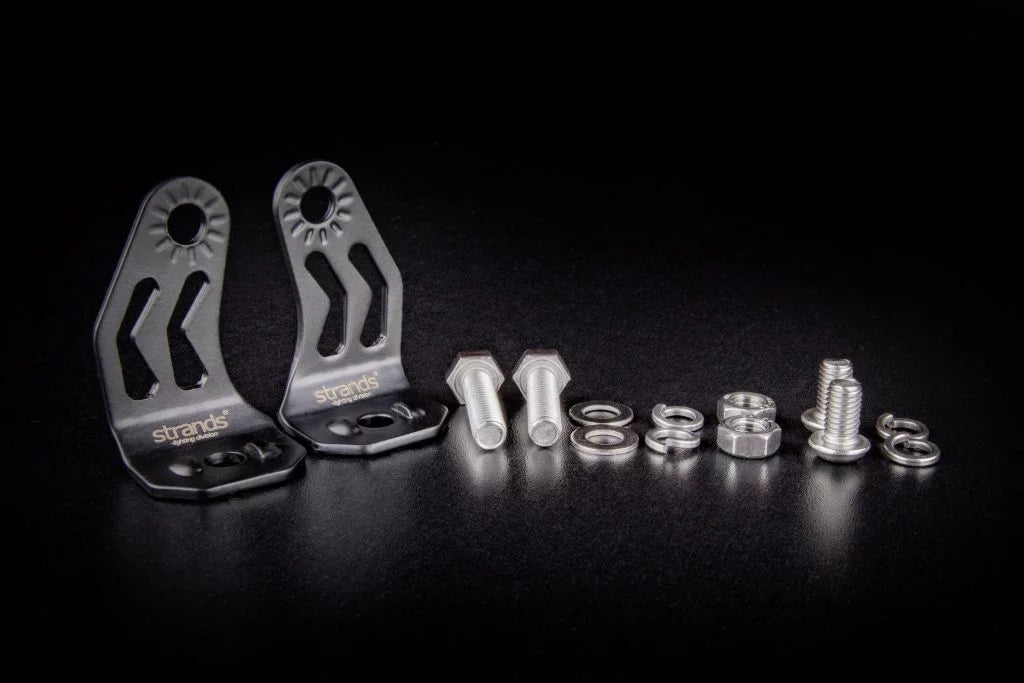

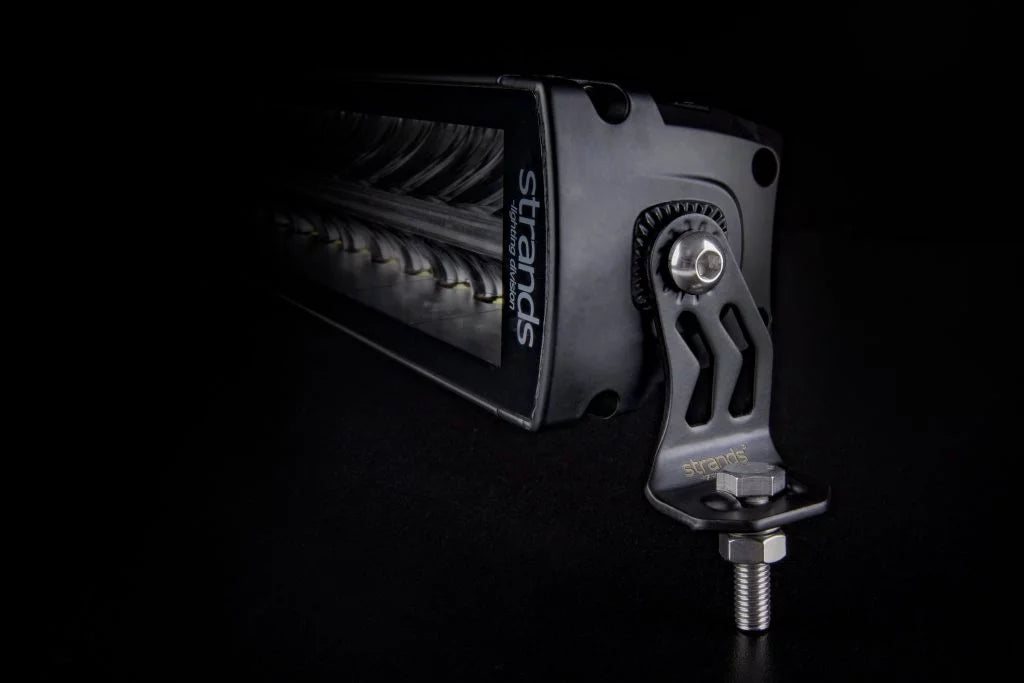

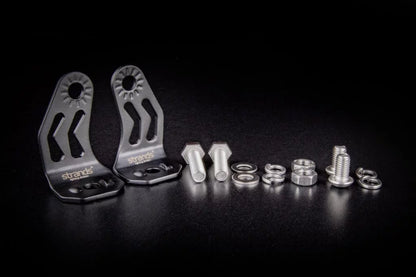

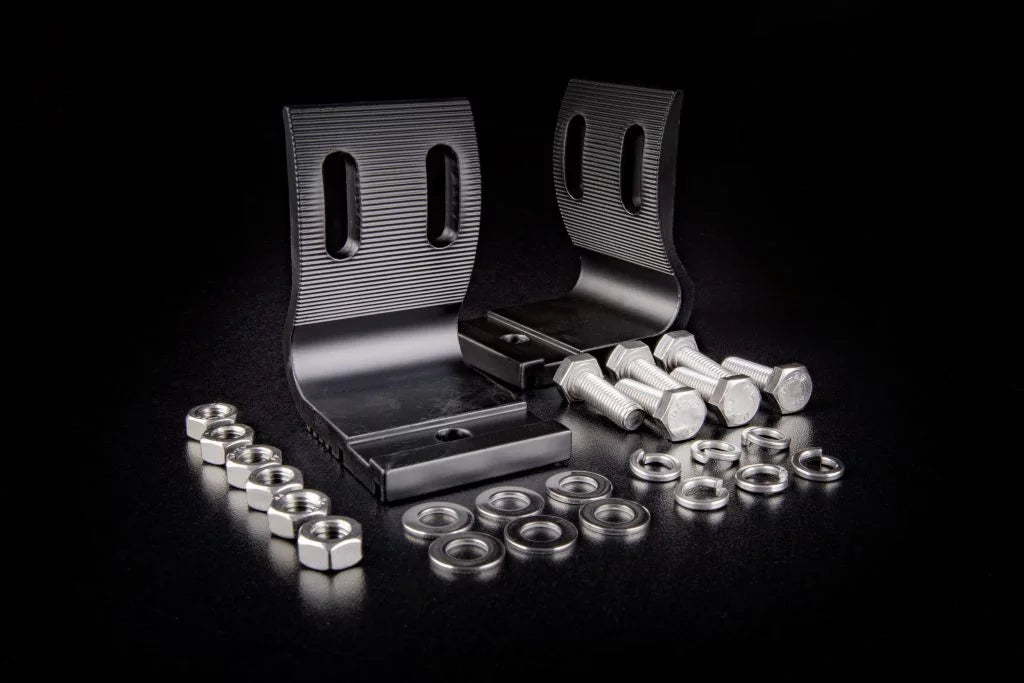

- Material bracket Stainless steel
- Material housing/chassi Aluminium
- Material lens Polycarbonate
- Length (mm) 562
- Depth (mm) 71.5
- Height (mm) 76
- Height including bracket (mm) 89
- Operating temperature -20°C – +45°C
- ADR-approved No
- E-approved No
- EMC ECE R10
- 3 Year Functional Warranty
Price breakdown
Price breakdown
Light bar: $925;
