T7.1: 2023-25 Subaru Outback Non-Wilderness Trim DRL/Grille lights and brackets
T7.1: 2023-25 Subaru Outback Non-Wilderness Trim DRL/Grille lights and brackets
Type 7.1, Brooklyn Forest Edition
Product Specification
Product Specification
--------------------------------------------------
MATERIAL:
- ABS (Acrylonitrile Butadiene Styrene);
--------------------------------------------------
FORM FACTOR:
- Type 7 Brooklyn Forest Edition;
- Fits grille OEM part #: 91121AN25A;
--------------------------------------------------
STYLE:
- Prestige; Elite;
-- The difference between Prestige and Elite Styles is the additional bezels around LED;
- Appearance: Outer frames - Glossy or Matte finish; Inner Base plates - Frosty; Keepers - Frosty;

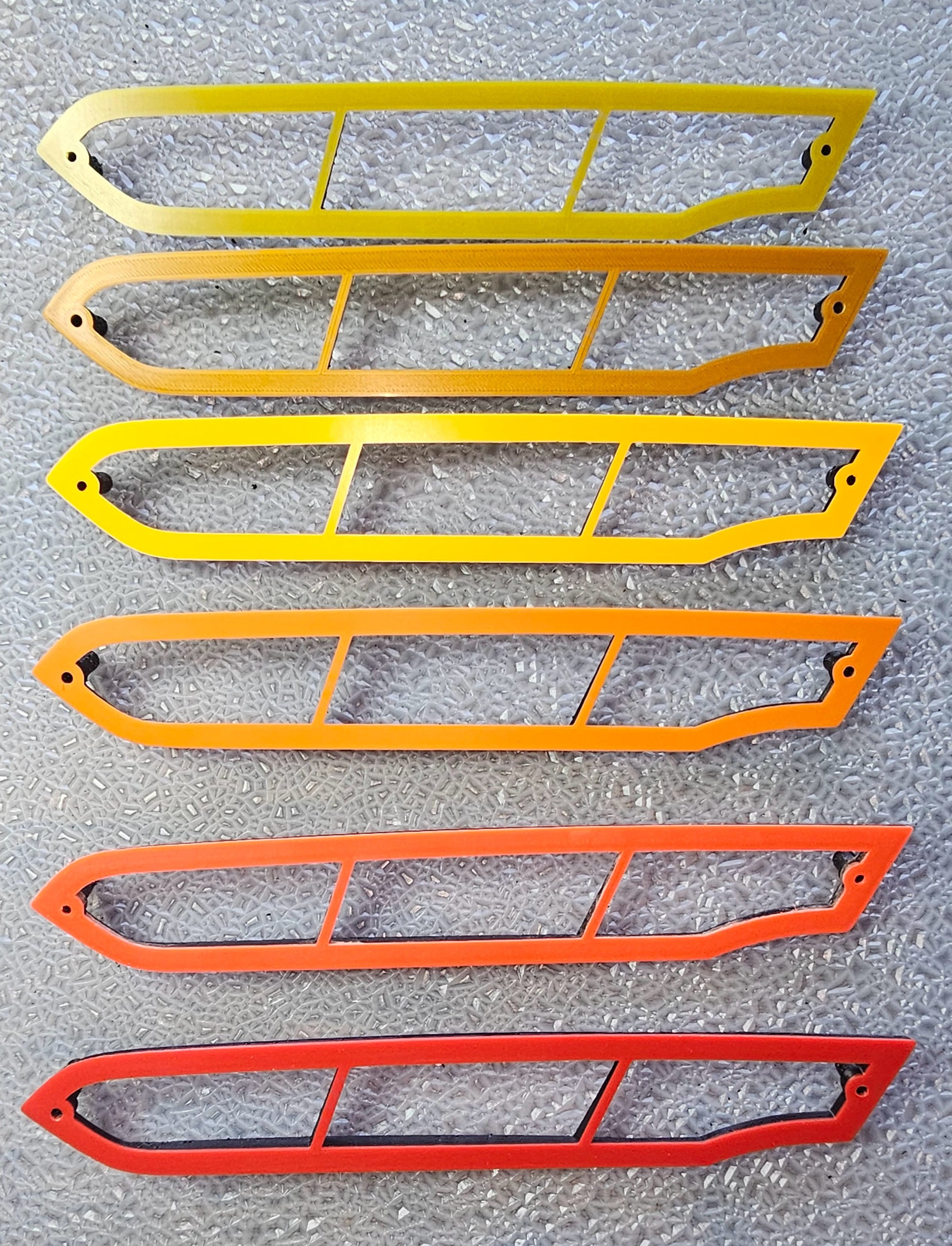

- Colors: Black; Wilderness Gold; White; Silver; Red; Olive Green; Blue; Orange;
- Color combination: Standard - Selected color outside / Black inside; Inverted - Black outside / Selected color inside;
--------------------------------------------------
LED:
- Single color: Amber or White;
- Spare LED bulb;
--------------------------------------------------
WIRING:
- 6ft; 22AWG; 4 x 2-pin connectors harness;
--------------------------------------------------
HARDWARE & SUPPLIES:
- M3-.5x16mm screws; M3-.5 knurled insert nuts;
- Low profile fuse tap adapter;
- 5A/10A/20A fuses;
- 22AWG Ring connector for ground wire;
- Zip ties;
--------------------------------------------------
Price breakdown
Price breakdown
DRL/grille light brackets, set of 2: $140;
Elite style bezels, set of 6: +$36;
LED, set of 3 X 2: +$60;
- Brooklyn Forest edition requires 2 wiring harnesses;
Installation hardware/materials: +$12;
What's in the box
What's in the box

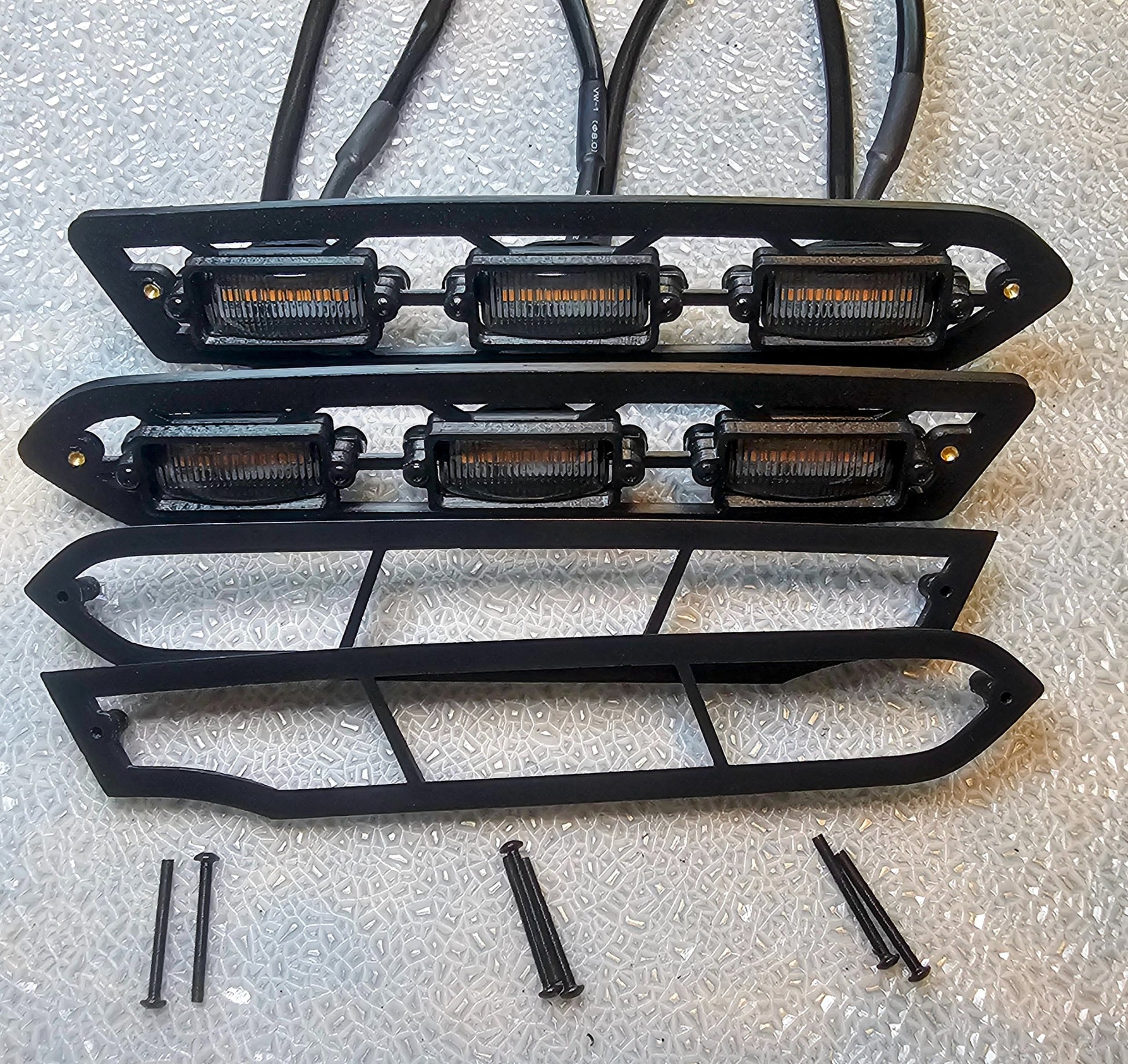

- Pre-assembled brackets, set of 2;
- Wiring harness x 2;
- Installation supplies;
- Spare LED;
Order customization guide:
Order customization guide:
--------------------------------------------------
Step 1: Select the Outer Brackets color;
Step 2: Select the Outer Brackets finish;
- Glossy finish is highly recommended!
Step 3: Select desired Color combination (not applicable for the Black color);
- "Standard" - Selected color outside / Black inside;
- "Inverted" - Black color outside / Selected color inside;
------- Continue with the steps below, if applicable -------
Step 4: Select the LED Type;
- "No LED" - if you plan to use your own LED elements.
- "Single Color" - The set of single color LED with simple wiring harness included;
- Pick your desired LED color;
Step 5: Select the Installation supplies;
- "Yes" - the fuse tap adapter/fuses; O-ring terminal; zip ties;
- "No" - no supplies will be included;
--------------------------------------------------
